Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle

Product Categories
DOWELL INDUSTRY GROUP LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 7-15 Days

Cable Diameter : 2-8mm

Clamp Type : 1 - 2 pair drop wire clamp

Suitable : Outdoor Use

Clamp Capacity : 1-4 fibers

Mounting Type : Pole Mount

Conduit Box Material : Nylon (UV resistance)

Model Number : DW-PA535

Place of Origin : Zhejiang, China

Brand Name : DOWELL

Packaging Details : Normal Package

Supply Ability : 50000 PCS Per 7 Days

MOQ : 1000 pieces

Contact Now

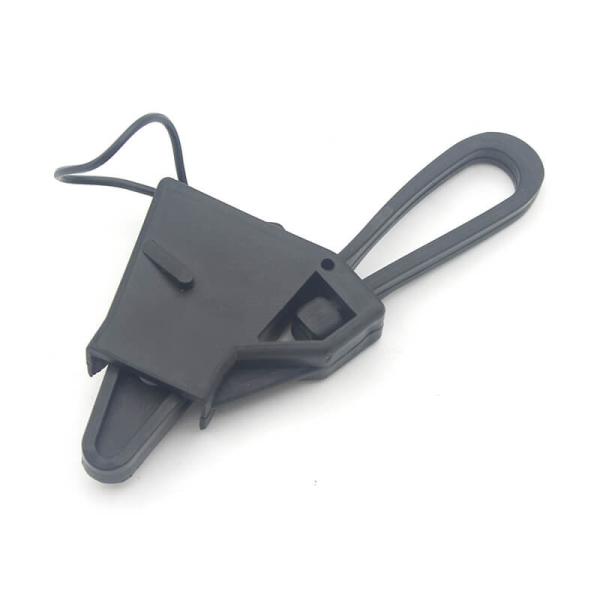

Outdoor Single Cable Drop Wire Suspension Clamp Thermoplastic Handle

Dead-ending and suspension of flat drop wires 5/9 et 5/99. Single piece thermoplastic drop clamp, designed with a closed conical body shape, a flat wedge connected to the body, through a flexible link ensuring its captivity and an opening bail.

Specification:

1.1 May be re-entered and reused.

1.2 Easy cable slack adjustment to apply proper tension.
1.3 Weather and corrosion resistant plastic components.
1.4 No special tools required for installation.
Application:
2.1 Pass the free end of the plastic bail through the ring or cross-arm,lock the bail into the clamp body.
2.2 Form a loop with the drop wire. Pass this loop through the stretched end of the clamp body. Place the clamp wedge into the loop.
2.3 Adjust the drop wire load, sag by pulling the dropwire through the wedge of the clamp.
2.4 Cable tie and suspension for copper to TE1SE cable. Ideal for flat cables of 8x3 mm or round cables Ø7 mm.
Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle

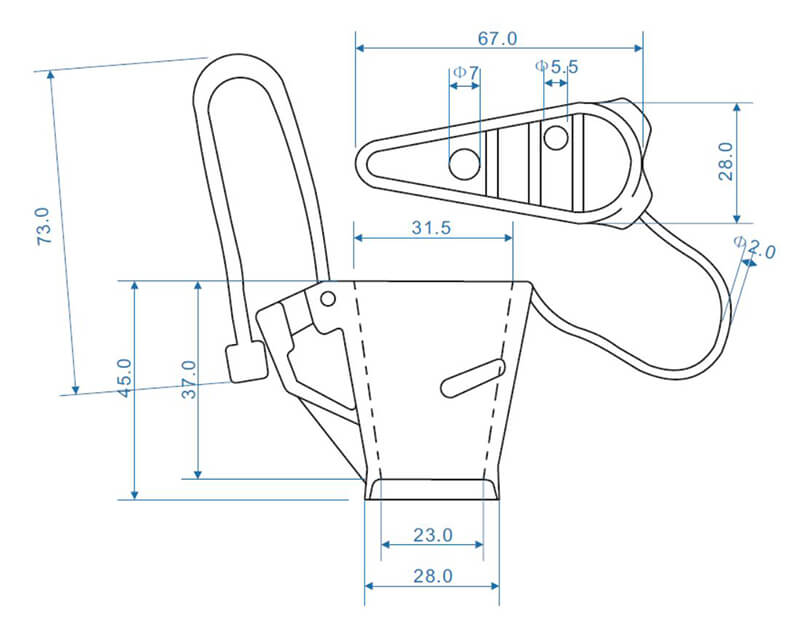

Dimension
Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle
Our Package
Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle
Production Flow
Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle
